Extension Structure

The source of an Extension comprises a directory that follows the following structure:

• DirectoryExtensionDirectory

  • manifest.json Contains Extension meta data.
  • content.js Injected into every single web page’s content, i.e., window scope.
  • background.js A persistent service worker that runs in the background.
  • popup.html A persistent, toggleable modal that pop up on top of the current page.
  • newtab.html A page that is initially displayed in every new tab.
  • side_panel.html A persistent, toggleable side panel that can be opened programmatically.
  • Directoryexample_directory Individual files (assets, modules, …)

    • example.jpg
    • …
  • …

Only the manifest.json file is required. For instance: if you only want to customize the page that opens in a new tab, provide a newtab.html. Again, Webfuse Extensions aim for parity with browser Extensions. You can hence draw from knowledge, or adjacent information regarding web/browser extensions.

Caution

While uploading an Extension, Webfuse recursively scans the entire Extension directory with the following rules and limitations:

• Maximum file size 10MB per file.
• Hidden files and directories (names starting with ’.’) are skipped.
• The node_modules directory is automatically skipped during upload. Upload only files from your compiled extension.
• Files that do not resolve to one of the below MIME types are skipped:
  • Text text/* (e.g. text/plain, text/html, text/css, etc.), JavaScript (application/javascript, text/js), JSON (application/json)
  • Image image/* (e.g. image/png, image/jpeg, image/gif, image/webp, image/svg+xml, etc.)
  • Audio Any audio MIME types audio/* (e.g. audio/mpeg, audio/wav, audio/ogg, etc.)
  • Video Any video MIME types video/* (e.g. video/mp4, video/webm, video/ogg, etc.)
  • other PDF (application/pdf), XML (application/xml)

Key Differences from Chrome Extensions

Webfuse extensions use almost the same manifest format and APIs as Chrome Manifest V3 extensions, but the execution environment differs. Here are the key differences:

Manifest differences

Webfuse supports a subset of Chrome’s manifest.json fields and adds a few of its own.

Webfuse-exclusive fields (not available in Chrome extensions):

Field	Description
env	Configurable environment variables accessible via browser.webfuseSession.env.
virtualized_browser_only	Load the extension only in the virtualized browser.

Chrome fields not supported in Webfuse:

Chrome Field	Notes
permissions	Chrome’s permissions array (activeTab, storage, tabs, etc.) is not used. Webfuse grants API access based on the session context instead.
content_scripts[].css	CSS file injection is not supported. Inject styles from JavaScript instead.
content_scripts[].run_at	Timing control (document_start, document_end, document_idle) is not supported. Scripts run after the document loads.
content_scripts[].world	Execution world (MAIN vs ISOLATED) is not supported. Content scripts always run inside the Webfuse sandbox.
web_accessible_resources	Not supported.
options_page / options_ui	Extension settings pages are not supported. Use env for configuration.
commands	Keyboard shortcut definitions are not supported.
content_security_policy	Custom CSP overrides are not supported. Use host_permissions to allow external domains.
storage	chrome.storage / browser.storage is not available. Use env for configuration and manage state in the background script’s memory.

Fields that behave differently:

Field	Difference
content_scripts[].matches	Defaults to ["<all_urls>"] if omitted (Chrome requires it explicitly).
host_permissions	Only updates the CSP connect-src directive for the extensions origin. Does not grant broader host access like in Chrome.
action.default_icon	Only size 24 is supported (used for the session topbar icon).

Content scripts run inside the Webfuse sandbox

Content scripts are injected into the proxied page and run inside a JavaScript sandbox that makes the page appear as if it is loaded from its original domain. This means:

• window.location.href, document.domain, location.hostname return the original domain values (e.g. https://x.com), not the proxied URL
• Cookies appear as if set on the original domain
• The page behaves as if it is running on the original origin

Content scripts are not affected by host_permissions — they follow the page’s own security context.

Other components run from a separate origin

The popup, side panel, background/service worker, and new tab page are served from a dedicated extensions origin (extensions.<your-domain>), separate from the proxied page. Because they run on this separate origin, the browser’s Content Security Policy (CSP) applies — connect-src will block outbound fetch() and XMLHttpRequest calls to external domains unless explicitly allowed via host_permissions.

CORS applies to non-content components

Because popup, side panel, and background scripts run from the extensions origin, CORS rules apply to their outbound requests, the target server must send appropriate Access-Control-Allow-Origin headers or the browser will block reading the response.

Workaround: Route requests through your own backend that adds CORS headers.

Manifest

The entry point of an Extension is the manifest.json file, which is a JSON file that contains meta information about the Extension, such as name, version, and relative paths to component files.

{
    "manifest_version": 3,

    "name": "example-extension",
    "version": "1.0",
    "background": {
        "service_worker": "background.js"
    },
    "content_scripts": [
        {
            "js": ["content.js"],
            "matches": ["<all_urls>"],
            "all_frames": false,
        }
    ],
    "action": {
        "default_icon": {
            "24": "top-bar-icon.png"
        },
        "default_popup": "popup.html"
    },
    "chrome_url_overrides": {
        "newtab": "newtab.html"
    },
    "side_panel": {
        "default_path": "side_panel.html",
        "overlay": false
    },
    "host_permissions": ["<all_urls>"],
    "homepage_url": "https://github.com/owner/repo",
    "virtualized_browser_only": true,
    "env": [
        {
            "key": "foo",
            "value": "bar",
            "description": "This is a description of the environment variable"
        }
    ],
    "icons": {
        "16": "favicon.png",
        "32": "side-panel-icon.png",
        "48": "icon.png"
    }
}

Caution

Webfuse currently only supports web manifest version 3.

background.service_worker

The service worker which runs in a separate thread. It is available for all Session participants.

content_scripts

List of content scripts which will be loaded in all tabs. It is loaded only on the tab’s owner side:

• js (array): Array of JavaScript files to inject
• matches (array): Array of match patterns that specify which pages the content script runs on. For example, ["https://github.com/*"] runs only on GitHub, while ["<all_urls>"] runs on all pages. Uses the same pattern syntax as host_permissions.
• all_frames (boolean, optional): If true, script runs in all frames including iframes. If false (default), runs only in the main frame. This affects browser.tabs.sendMessage() frame targeting with the frameId option.

action.default_popup

This is the popup window which will be opened when the user clicks on a button in the Extension. It is available for all Session participants and will show the popup window with the content of the specified HTML file.

action.default_icon

The extension popup related icons. The available icons are:

• 24 - The icon of the Extension which will be displayed in the topbar of the Session, if not provided, the default icon will be used in the topbar of the Session. It is not used as a fallback icon for the new tab page and side panel components.

Tip

When default_icon is not provided, the fallback logic will use the icons section to pick the next larger icon (preferring to downscale), or the largest smaller icon if no larger one exists. If no icons are provided at all, the default icon will be used for the topbar of the Session.

chrome_url_overrides.newtab

The new tab page which will be opened when the user clicks on the ’+’ button in the tab bar. It is available for all Session participants.

Note

The content script is not loaded in the custom new tab page.

side_panel.default_path

The side panel page which will be opened if user calls browser.sidePanel.open() API method for the extension.

side_panel.overlay

Optional boolean (default false) that controls how the side panel is laid out relative to the tab content:

• false (default) — the side panel pushes the tab content aside; the tabframe shrinks to make room.
• true — the side panel floats above the tab content; the tabframe does not reflow.

This is the initial value; extensions can change it at runtime via browser.sidePanel.setOverlay().

host_permissions

List of URL patterns that control which external domains your extension can make requests to. It works by updating the Content Security Policy connect-src directive for the extensions origin. Without the correct host_permissions, outbound fetch() and XMLHttpRequest calls from your popup, background, side panel, and new tab scripts will be blocked by CSP. This does not affect content scripts — they run in the page’s security context.

A match pattern is a URL with the following structure, used to specify a group of URLs:

<scheme>://<host>/<path>

• scheme: Must be one of the following, separated from the rest of the pattern using a colon followed by a double slash (://): http, https, wildcard *, which matches both http and https.

• host: A hostname (www.example.com). A * before the hostname to match subdomains (*.example.com), or just a wildcard *. - If you use a wildcard in the host pattern, it must be the first or only character, and it must be followed by a period (.) or forward slash (/).

• path: A URL path (/example). For host permissions, the path is required but ignored. The wildcard (/*) should be used by convention.

Special case:

"<all_urls>" - Matches any URL that starts with a permitted scheme

Read more about match patterns here.

homepage_url

The URL of the homepage of the Extension. If defined and is a valid public GitHub repository URL, the Extension can be imported from a template.

virtualized_browser_only Webfuse Exclusive

• If the virtualized_browser_only flag is set to true, the Extension will be loaded only in the virtualized browser. This is useful if you want to offload some operations to the virtualized browser. You can also use this feature to hide some functionality or data from the end-user (e.g. credentials, etc.).

Caution

This feature requires the automation permission and Virtual Participant app to be installed in the space.

You can also use this feature to create a virtual participant and control your Session using the Automation API

env Webfuse Exclusive

You can use the env key to pass environment variables to the Extension. These variables will be available in all components of the Extension. To use environment variables defined in the manifest.json file, you can use the browser.webfuseSession.env object. This is useful if you want to use some shared data between components of the Extension or if you want to make your Extensions shareable and let users pass their own values to the Extension. If you want to share your Extension with environment variables feature to someone else, you can share a manifest.json file with env section populated with the objects with values as empty strings:

{
    "env": [
        {
            "key": "foo",
            "value": "",
            "description": "This is a description of the environment variable"
        }
    ]
}

Browser Console

console.log(browser.webfuseSession.env.foo); // bar

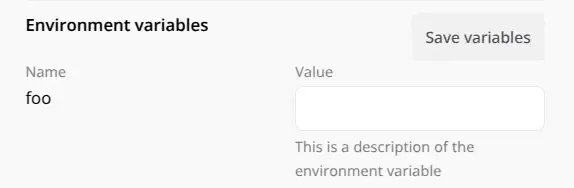

After that, variables can be set or overridden from the Session Editor’s Extension details tab.

icons

A set of icons that will be displayed for the Extension in different parts of the Session UI. The following sizes are used:

• 16 - Favicon used for extension with Newtab Component to be displayed in the new tab tile and browser tab
• 32 - Icon used for extension with Side Panel Component to be displayed in the header of the extension side panel component
• 48 - Icon used for extension editor on the list of extensions and extension details views

Tip

When a specific size is needed but not available, the fallback logic will pick the next larger icon (preferring to downscale), or the largest smaller icon if no larger one exists. If no icons are provided at all, the default icon will be used (or no favicon in the case of new tab pages).

Background Component

The service worker is a script that can handle all logic of the Extension - it is run on every participant’s side as soon as they join the Session.

Content Component

The content script is a script that is injected into each web page. This is a script that is executed in the context of the web page and only on the Tab Owner’s side. This script has access to the DOM of the web page and can manipulate it.

You can have multiple instances of this script running - one for each tab and or each iFrames.

Tip

When you have not customized the DOMAIN NAME of the Space or are on the FREE plan than whenever your Extension loads a content script it will require permission from the user to load the script.

Popup Component

The popup page is a window that is opened when the user clicks on a button in the Extension or by calling browserAction.openPopup() API method, its content is defined by the HTML file specified in the manifest.json file.

Tip

Use the popup or side panel component for any UI that needs access to browser.webfuseSession (env vars, session info, etc). Content scripts run in the page context and are better suited for DOM manipulation only.

Caution

For persistent state, it is recommended to use the Background Component, as the lifetime of the Popup is not guaranteed across open and closed states.

Newtab Component

The new tab page is a page that is opened when the user clicks on the ’+’ button to open a new tab - or when the Session is started to specifically open the New Tab Page. By configuring this page you can basically customize the new tab page within Sessions allowing you to style it as you want. By default, Webfuse shows a URL input field, and possibly buttons for collaborative features.

Side Panel Component

The side panel component is a panel that is opened on the right side of the Session UI. It is available for all Session participants and can be opened programmatically from any extension component except content script.
